AC90 Metal Clad Cable 600V - Copper Conductors
Standard
National: CSA C22.2 N° 2556; CSA C22.2 N° 51
Performance
FT4 Flame retardant; Lead free and ROHS compliant. Limited Smoke Zero Halogen
Working temperature
in dry locations only at temperature not to exceed 90°C.

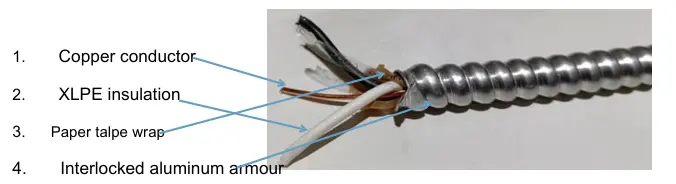

Structure
- Conductor: Copper conductor with Copper grounding wire 14WG to 2AWG or aluminium alloy 8000series ACM with AL grounding wire 6AWG to 750MCM
- Insulation: cross-linked polyethylene insulation (RW90 XLPE)
- Assemble wrap: Conductor assembly paper wrapped
- Armored: bare interlocked aluminum armour.
- Number of conductor: Two, three or four core round laid
Application
For open and concealed wiring in dry locations only. For use in cabletroughs and ventilated flexible cableways in dry locations only. Minimum recommended installation temperature minus 40°C (with suitable handling procedures). Maximum Conductor temperature 90°C. Approved for use with ceiling fixtures. Armoured cable for commercial, industrial and apartment use.
