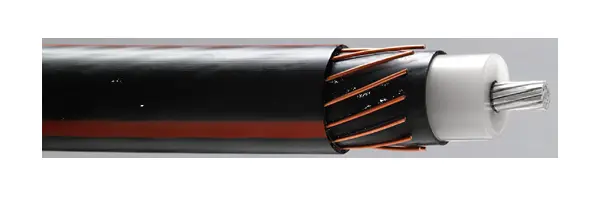

MV-90 5 -35 kV Single Conductors
Stranded Compressed aluminum conductor or copper conductor, triple extruded conductor screen, insulation and insulation Screen, copper wire screened, LLDPE sheath.
Application
Used for medium voltage installations or distribution networks both indoors and outdoors. Ex. for the supply of transformer stations, infrastructure, wind turbines, solar parks, factory plants, data centers along with others.
Construction
- Conductor: Electrolytic Compressed aluminum class 2 or copper class 2 (Soft Copper or 1350-H19 aluminum)
- Conductor screen: Semi conductive extruded layer
- Insulation: TR-XLPE
- Insulation screen: Semi conductive extruded layer, Easy strippable.
- Copper screen: Copper wires
- Outer sheath: Sun resistant LLDPE sheath
- Rated volatge (u): 5~35 kV
Core Identification
Insulation: Natural
Outer Sheath Colours
Available colours: Black with 3 red stripes.
Max. Conductor Operating Temperature: 90°C
