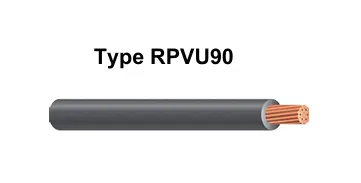

Type RPVU90
Working temperature : 90°C MAX, -40°C MIN

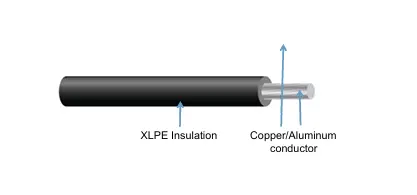

Structure
Aluminum
- sizes from #6 AWG to 1000kcmil, stranded
- compact stranded AA-8000 series aluminum conductor material (ACM) per ASTM B801 Class B or ASTM B836
Copper
- sizes from #14 AWG to 1000kcmil, solid or stranded
- bare, stranded annealed per ASTM B8 Class B compressed
Standard
- CSA C22.2 No. 38-Thermoset-Insulated Wires and Cables
- CSA C22.2 No. 271-11
- ASTM B3, B8, B787
Application
RPVU90 cables may be installed indoors or outdoors, in raceways and conduits, both above and below ground, and may be direct buried. Direct buried installations must comply with CE Code Rules 12-012 and 4-004. They are 90°C, 2kV rated, and suitable for use in a photovoltaic system.
Type RPVU90 cables are for use on the DC and AC side of a photovoltaic system, suitable for installation in both wet and dry locations, and may be exposed to sunlight.
RPVU90 cables are RoHS Compliant.
