Type T90 Nylon/THWN75
Working temperature
in dry locations only at temperature not to exceed 90°C.
Standard
CSA C22.2 No. 75-03
ICEA S-95-658/NEMA WC 70
UL 83-Thermoplastic-Insulated WIres and Cables
UL 1063 (MTW)-Machine-tool Wires and Cables (stranded cables only)
UL 758 (AWM)

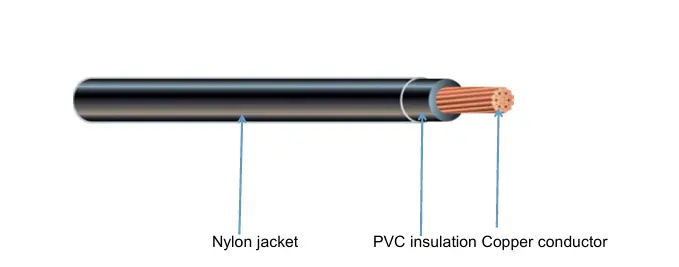

Structure
- Conductor: soft plain copper
- Insulation: PVC, color can be black, red, blue, green, white, purple, orange, etc.
- Jacket: Nylon
Application
General purpose building wire for installation as exposed or concealed wiring and in raceways (except cable trays) in dry or damp locations. Minimum recommended installation temperature minus 10°C (with suitable handling procedures). Maximum conductor temperature 90°C dry, 75°C in wet locations, and 60°C when exposed to oil.
| Voltage: 600V |
